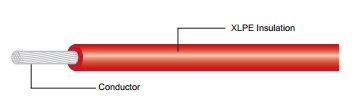

UL 10368	XLPE insulated / 105C 300V
Standard	Solid , Strand and OS-1 either tinned or bare copper
Conductor	105C 300V
Rating	UL VW-1
Flammability	Heat resistant XLPE which is cross-linked by electron beam machine and stable thermally
Insulation	Uniform thickness of wire to ensure easy stripping and cutting
Usage	Resistant to acids, oils, alkalines, moisyure and fungus which are excellent compared with normal PVC wire

UL 10368 (Stranded)	30	7/0.102	0.25	0.8	11480	3500	381
	28	7/0.124		0.9	11480	3500	239
	26	7/0.160		1	11480	3500	150
	24	7/0.203		1.1	2000	610	94.2
	22	7/0.253		1.3	2000	610	59.4
	20	7/0.320		1.5	2000	610	36.7
	18	7/0.404		1.7	2000	610	23.2
	16	26/0.253		2	2000	610	14.6
UL 10368 (Solid)	30	1/0.253		0.76	11480	3500	361
	28	1/0.320		0.83	11480	3500	227
	26	1/0.404		0.9	11480	3500	143
	24	1/0.511		1.02	2000	610	89.3
	22	1/0.643		1.15	2000	610	56.4
	20	1/0.813		1.32	2000	610	35.2
	18	1/1.024		1.52	2000	610	22.2
	16	1/1.290		1.8	2000	610	14
UL 10368  (OS-1)	26	7/0.160		1	4000	1220	150
	24	7/0.203		1.1	2000	610	94.2
	22	7/0.253		1.3	2000	610	59.4
	20	7/0.320		1.5	2000	610	36.7
	18	7/0.404		1.8	2000	610	23.2
