UL 4478	XLPE insulated / 105C 300V
UL 21016	XLPE insulated / 105C 300V
Standard	UL, CUL AWM  I A
Conductor	Solid , Strand and OS-1 either tinned or bare copper
Rating	105C 300V
Flammability	UL VW-1, CUL FT 1

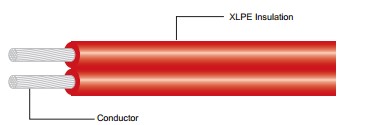

Insulation	Heat resistant hologen free XLPE
Usage	Uniform thickness of wire to ensure easy stripping and cutting
	Resistant to acids, oils, alkalines, moisyure and fungus which are excellent compared with normal PVC wire

UL Style CUL Type	Conductor		Core	Insulation Thickness	Overall  Diameter Approx	Standard Put-Up	Conductor Resistance at 20 C
	(AWG)	(No./mm)	No.	(mm)	(mm)	(M/coil)	(ohm/km)
UL 4478 UL 21016 AWM I A	32	7/0.080	2	0.25	0.74 x 1.49	610	456.74
			3		0.74 x 2.23	610
			4		0.74 x 2.98	610
	30	7/0.102	2		0.81 x 1.62	610	381.00
			3		0.81 x 2.44	610
			4		0.81 x 3.25	610
	28	7/0.127	2		0.89 x 1.78	610	239.00
			3		0.89 x 2.66	610
			4		0.89 x 3.55	610
	26	7/0.160	2		0.99 x 1.98	610	150.00
			3		0.99 x 2.97	610
			4		0.99 x 3.96	610
	24	11/0.160	2		1.11 x 2.23	610	94.20
			3		1.11 x 3.34	610
			4		1.11 x 4.45	610
	22	17/0.160	2		1.26 x 2.52	610	59.40
			3		1.26 x3.79	610
			4		1.26 x 5.05	610
	20	21/0.180	2		1.45 x 2.91	610	36.70
			3		1.45 x 4.36	610
			4		1.45 x5.81	610
	18	34/0.180	2		1.71 x3.42	610	23.20
			3		1.71 x 5.14	610
			4		1.71 x 6.85	610
	16	26/0.253	2		1.99 x3.98	610	14.60
			3		1.99 x 5.97	610
			4		1.99 x 7.96	610
